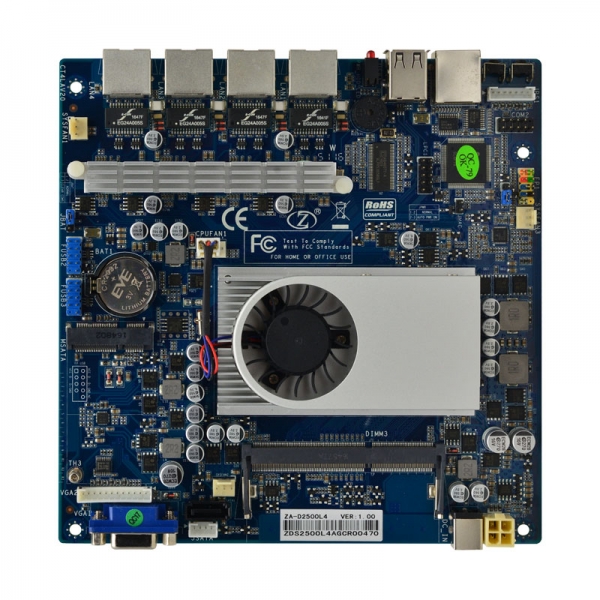

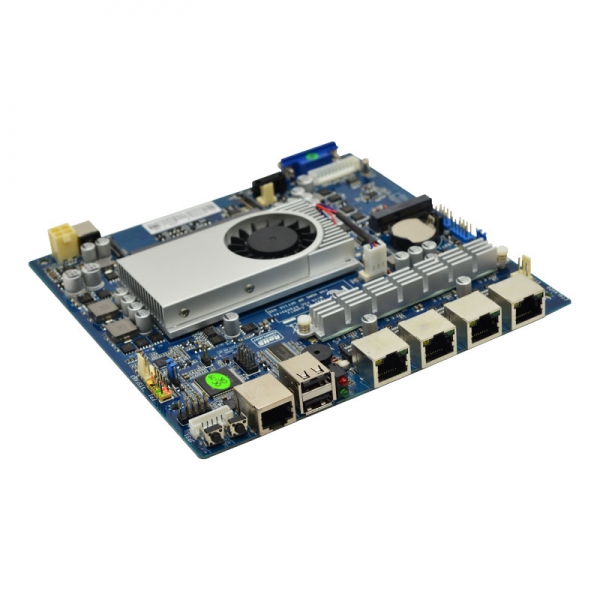

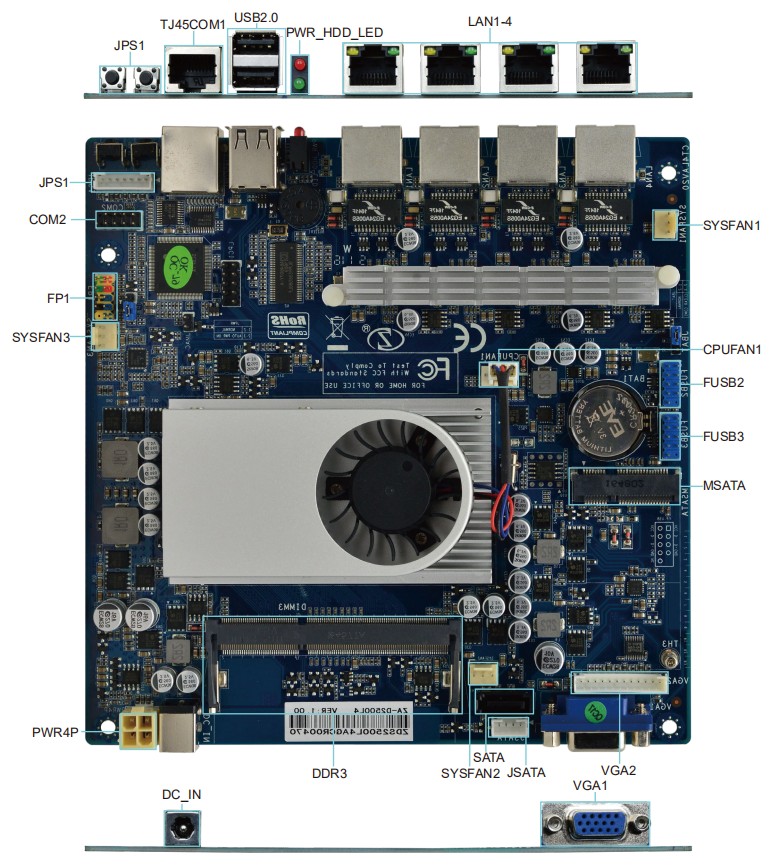

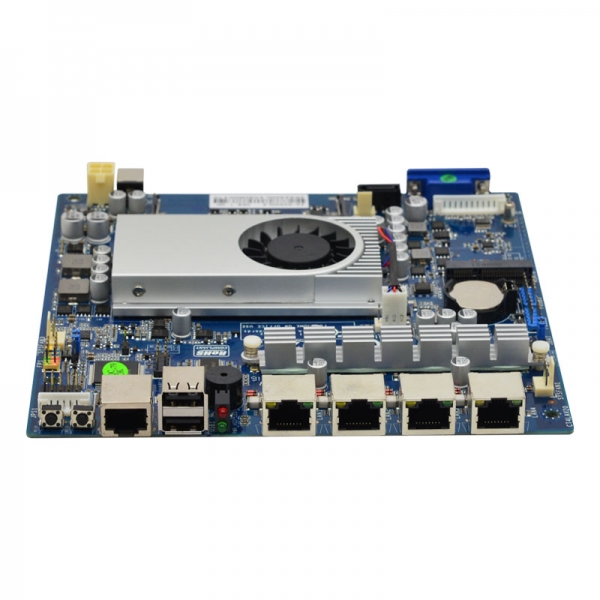

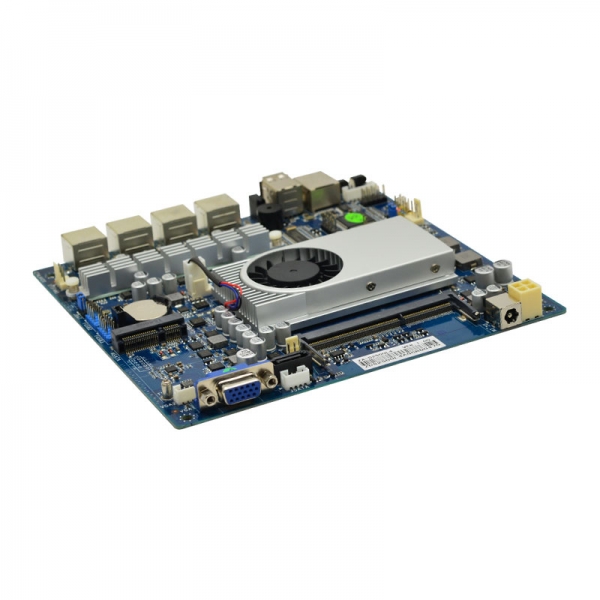

| Model NO. | ZA-D2500L4 |
| Size | 170mm x 170mm |
| CPU | Support Intel Atom™ D2500 (1M Cache, 1.86 GHz) Processor |
| Memory | 1* DDR3 Slot ,800/1066/MHz memory ,Up to 4 GB |
| Graphics | Intel HD Graphics |
| Chipset | Nm10 |
| Rear I/O | 1* RS232 |
| 4* LAN | |
| 2*USB 2.0 | |
| Internal I/O | 1* CPU Fan and SYS Fan |
| 2* USB Pin, Support 4* USB 2.0 Ports | |
| 1*VGA Pin | |
| BIOS AMI | AMIBIOS,64M bit Flash Memory |
| SATA | 1* SATA ,1* MSATA |
| LAN | 4 LAN Intel WG82583,10/100/1000M |
| H/W Monitoring | Temperature Management ,Voltage Management |
| Expansion | 1 DDR3,1 SATA,1 MSATA |
| Operating System | Windows7,Windows8, Windows 10, Linux |
| Temp. | -10° C ~ 55° C |
| Humidity | 0% ~ 95% (Relative Humidity,No Condensation) |
