ZA-3568B_V10
-High-performance processing chip: integrates HDMI/LVDS/EDP/Ethernet/WIFI/BT in one. Easily handles various application scenarios.
-Multiple network transmissions: Ethernet, Wi-Fi, Bluetooth, 4G network.
-The maximum output resolution of LVDS TX can reach 1920*1200, and the maximum supported resolution of the EDP screen is 2560*1600.

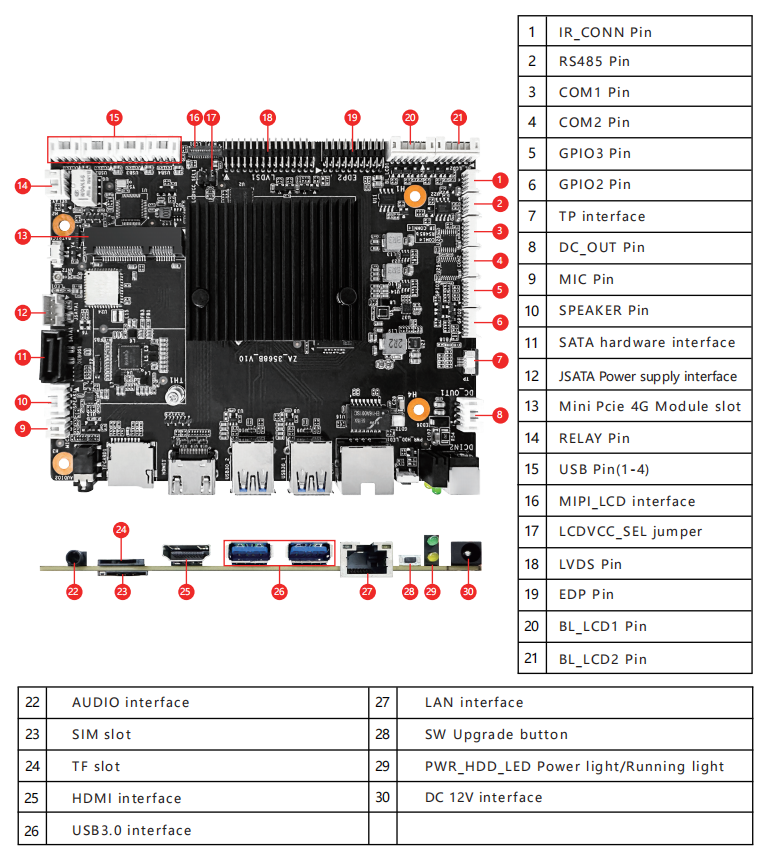

-High scalability: 6*USB ports, 5*serial ports (2*RS232, 1 RS485, 2 UART), GPIO, MIC,SPEAKER, IR, relay, MIPI display, 1*100M network port, power output, etc.
-Supports Android system customization, provides system call interface API reference code, perfectly supports customer upper-layer application APP development.
-Eco-friendly green: industrial-grade EMI and ESD protection.
-Strict quality control: 7 day
